ETICS BOARD

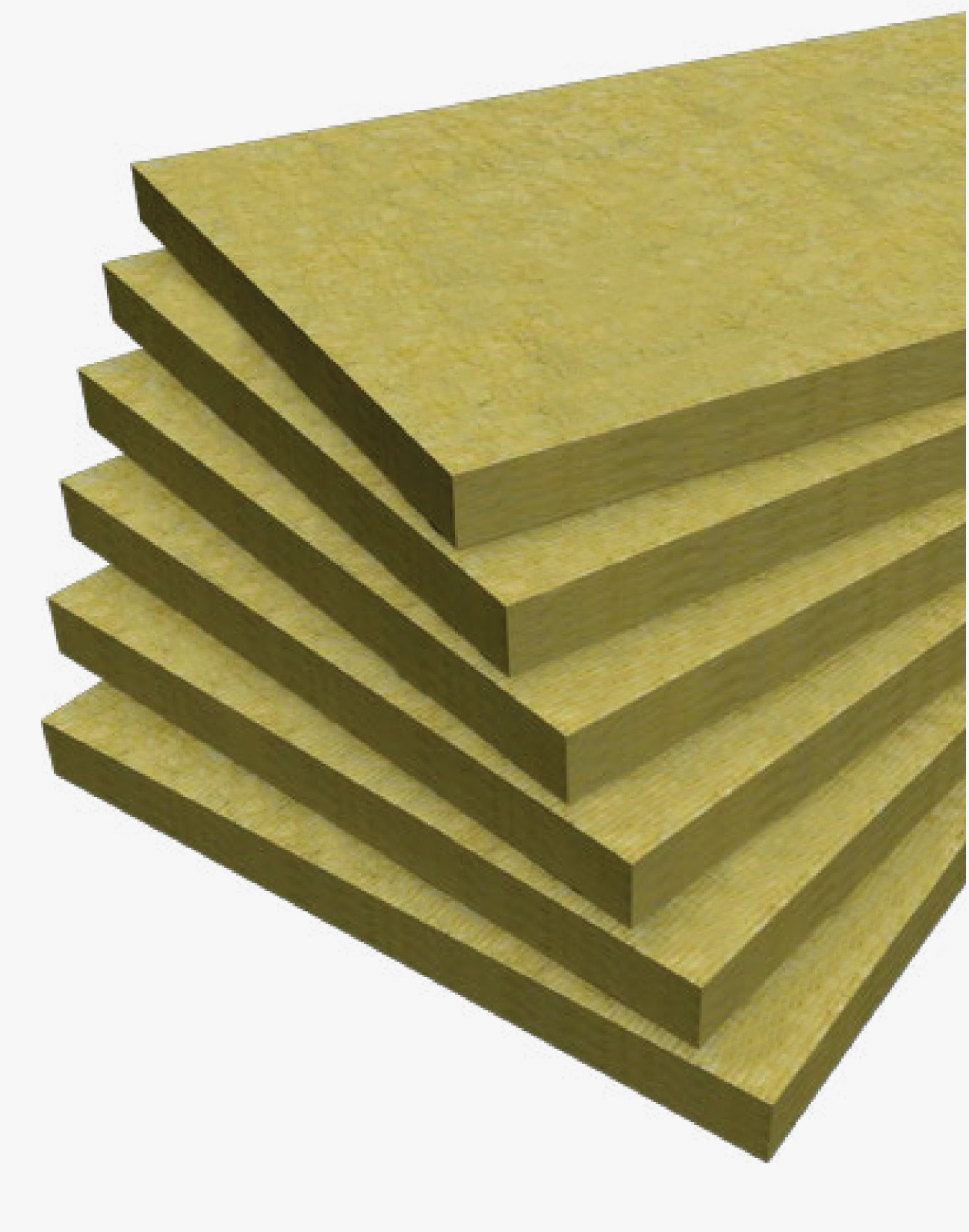

ETICS ( FACADE ) BOARD

It is used under plaster on exterior facades for heat and sound insulation and fire safety. The structure of Hair- Braiding fiber makes the application of overcoating on the stonewool more resistant and strong. Through, the load capacity on the construction and surface increases. ETICS board, which contains complex fiber structure formed by interlocked fibers inside, creates resistance to withstand high pressure in lower densities. Bare stone wool slabs produced in accordance with TS EN 13500, resistant to impact strength and compressive strength

Application Principles

ETICS board used at outside of the buildings under the stucco for heat, sound insulation and fire protection Boards are sticked with the cement based adhesive daub on the smooth surface. Loose particles on the building surface should be cleaned by brushing and damaged areas should be repaired with plaster. After all surfaces are ready for insulation, the plumb line of the building is controlled with the help of plumb lines and horizontal ropes, then water insulation profile is placed and the thermal insulation panels should be adhered to the surfaces with various bonding methods. Care should be given so that the adhesive cement materials should not overflow out of the joints. 24 hours later, it will be fastened; respectively corner profiles, plaster, 160 gr/m2 alkaline resistant mesh, correction plaster, priming coat, mineral coating and finally priming exterior paint is applied
